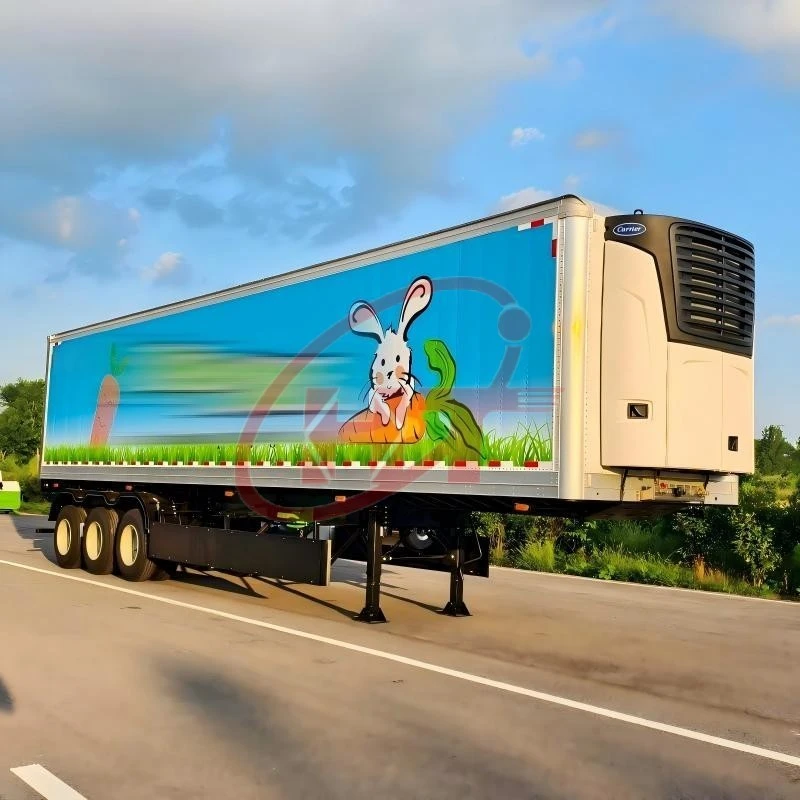

Functional Positioning:Txhais raws li qhov kub tshwj xeeb- tswj cov tsheb thauj khoom tsim los rau kev thauj khoom zoo ntawm cov khoom puas tsuaj, hais txog kev ruaj ntseg ntawm cov qauv thiab kev tswj qhov kub thiab txias.
Core Structure & Parameters:Ntxiv cov ntsiab lus ntawm siab -lub zog Q345B steel chassis thiab 80-100mm polyurethane ua npuas ncauj rwb thaiv tsev, tswj qhov kub ntawm -30℃rau +25℃. Standard qhov ntev muaj xws li 12.2m (40ft), 13.7m (45ft), thiab 16.2m (53ft), muab 30-65 m³ cargo ntim thiab 25-45 tuj load peev.
Key Configurations:Kev lag luam tshwj xeeb-cov neeg nqa khoom lossis Thermo King tub yees (xaiv tau 2-3 ntau- qhov kub thiab txias nrog ± 1℃stability), BPW/FUWA qag, cua ncua kev kawm, WABCO EBS braking, thiab GPS ntsuas kub ntawm lub sijhawm.
Daim Ntawv Thov & Ua raws:Qhia meej qhov tsim nyog rau kev thauj khoom (nqaij, nqaij nruab deg, khoom noj siv mis), tshuaj (cov tshuaj tiv thaiv, biologics), thiab kub - cov tshuaj rhiab heev, ua raws li FDA, HACCP, thiab GDP qauv.
parameter lis
|
Paub meej |
Specification (rau kev siv) |
|
1.Txhua yam tsis muaj |
|
|
Tag nrho ntev (nrog rau lub tub yees) |
13600 hli |
|
Tag nrho qhov dav |
2500 hli |
|
Tag nrho qhov siab |
4000 hli |
|
Sab hauv ntev |
13 425mm |
|
Sab hauv dav |
2 330mm |
|
Sab hauv qhov siab |
3000 hli |
|
Sab hauv ntim |
78m³ |
|
Lub tub yees qauv thiab accessories |
7300 Nws |
|
2. Ua npuas ncauj txheej thickness |
|
|
Pem hauv ntej phab ntsa |
100 hli |
|
Sab phaj |
75mm ua |
|
Rooj |
80 hli |
|
Pem teb |
64mm ib |
|
Qhov rooj ntoo |
76mm ua |
|
3.Car lub cev configuration |
|
|
Pem hauv ntej phab ntsa sab nrauv phaj |
Precoated dawb aluminium phaj |
|
Sab nrauv phaj |
Precoated dawb aluminium phaj |
|
Sab nraum lub ru tsev |
Tag nrho du aluminium phaj |
|
Sab nrauv vaj huam sib luag |
Precoated dawb aluminium phaj |
|
Pem hauv ntej phab ntsa puab phaj |
Khoom noj khoom haus qib thermoplastic board |
|
Sab hauv phaj |
Khoom noj khoom haus qib thermoplastic board |
|
Sab hauv lub ru tsev |
Khoom noj khoom haus qib thermoplastic board |
|
Sab hauv lub qhov rooj |
Khoom noj khoom haus qib thermoplastic board |
|
Sub pem teb |
Khoom noj khoom haus qib thermoplastic board |
|
Hnav phaj |
Aluminium profile coj phaj yog hais txog 280mm siab |
|
Sab vaj huam sib luag cua qhia |
Sab hauv vaj huam sib luag yog muab nrog submerged ntsug cua qhia qhov |
|
Pem teb daim ntawv |
Reinforced cua qhia aluminium alloy pem teb, nrog lub qhov cua ntawm t pem teb ntawm ob sab (Tsev Vaj Huam Sib Luag) |
|
Qab beam |
Siab zog I-beam |
|
Pem teb stiffener |
cov khoom sib xyaw |
|

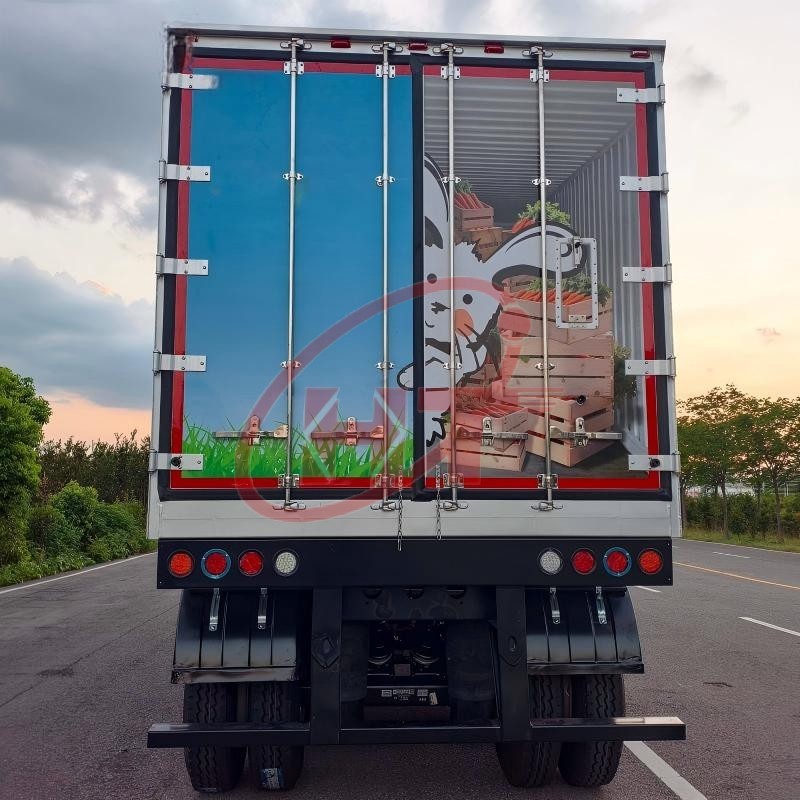

Hom qhov rooj rov qab |
Lub qhov rooj |
|
Lub qhov rooj pob khawm |
Aluminium alloy profile pob khawm |
|
Tus naj npawb ntawm cov locking rods |
Galvanized xauv pas nrig, 2 rau txhua qhov rooj, 4 nyob rau hauv tag nrho |
|
Sab nraum lub qhov rooj |
stainless hlau |
|
Qhov rooj tiv thaiv - kev sib tsoo thaiv |
ib sab laug thiab ib sab sab xis |
|
rear rooj kov |
Sab laug qhov rooj mounting kov |
|
Cov khoom siv dej xau |
Ob txheej ntawm pem hauv ntej thiab nram qab, nrog roj hmab nozzles |
|
Sab qhov rooj |
muaj |
|
4.Traveling mechanism thiab lub teeb kab |
|
|
Qab ncej |
Ncej ncej nrog girder |
|
Traction tus pin phaj |
Lub thawv tsim |
|
Traction pin |
50 # Traction pin KZ1008 |
|
Outrigger |
Jost 28T linkage Outrigger |
|
Kev ncua |
Peb axis mechanical suspension |
|
Qag |
BPW/FUWA/SAF/HT 13T qag |
|
Braking daim ntawv |
nruas nres |
|
Lub log |
12 tubeless lub tshuab nqus tsev vacuum |
|
Rim |
12 teeb ntawm carbon steel rims |
|
ABS |
Nrog |
|
teeb thiab teeb |
24V LED teeb |
|
Spare log carrier |
2set ib |
|
log tsheb spare |
1sets ib |
|
5.lwm |
|
|
Sab hauv qab nthab teeb |
Ib tug nyob rau hauv pem hauv ntej, ib tug nyob rau hauv nruab nrab thiab ib tug rear ntawm peb LED sab hauv qab nthab teeb |
|
Sab qhov rooj |
Sab xis qhib ob sab, (2400 * 2400, txoj haujlwm tshwj xeeb yog raws li kev tsim qauv) |
|
tuav-tag nrho |
1 aluminium, nruab rau sab laug |
|
Pem hauv ntej phab ntsa cua (qhov rooj / qhov rais) |
Muaj ib qho, ib qho ntawm sab laug thiab ib qho ntawm sab xis |
|
Lub qhov rooj qhib qhov cua thiab cov khoom siv (hauv qab txoj cai) |
Muaj ib. Nws yog ntsia ntawm sab xis lub qhov rooj. Qhov siab ntawm hauv pem teb: nws yog tsim kom tsawg li tsawg tau |
|
Kev txhim kho ntawm cov cua txias cua hauv qhov chaw |
Qhov cua tshuab nrog sab hauv vaj huam sib luag |
|
Lub qhov rooj tom qab yog lined nrog lub qhov cua tshuab stiffeners (qhov yog xuas nrig ntaus rau pem hauv ntej thiab sab ntawm lub stiffeners) |
|
|
Hauv cov cuab yeej siv |
Spare log crank, qag taub hau txiv ntseej, lub tes tsho, pry bar |
